Crewman AS20B Operation Guide

Machine preparation

• Add appropriate amount of cleaning chemical for 9 gallon tank to solution tank (see chemical labeling for dilution ratio)

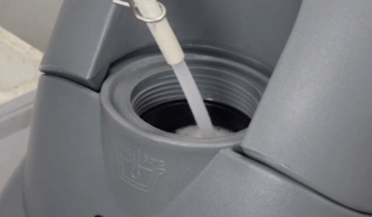

  • Add solution to tank via front fill port

• Install squeegee assembly on rear of machine by threading retaining pin into squeegee column

• • Attach squeegee suction hose to sleeve to complete squeegee installation



• Install pads, pad drivers, or alternatively install scrub brush to scrub deck
  • Install scrub pad to pad driver
    • Unscrew center lock from pad driver

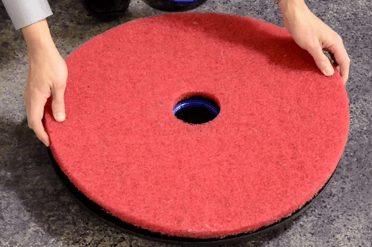

• • • center scrub pad on pad driver

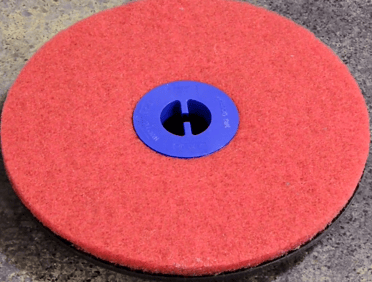

• • •  Screw center lock on pad driver to secure scrub pad

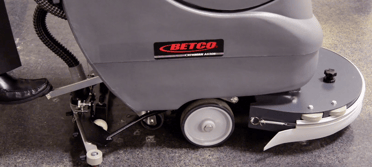

• • • Raise scrub deck via pedal

• • • Align pad driver / brush so it is centered under scrub deck

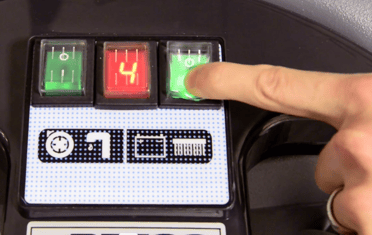

• • • Turn on brush control switch on main dashboard

• • • Lower scrub deck onto pad driver / brush via pedal

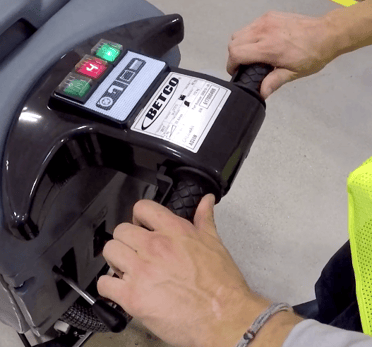

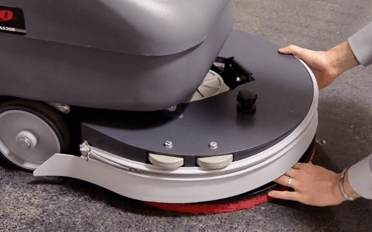

    • Attach pad driver to scrub deck by squeezing handle trigger

---

Machine operation

• Turn brush and vacuum on via switches on dashboard

• Lower squeegee assembly to floor via squeegee lever

• Lower scrub deck to floor via pedal at rear of machine

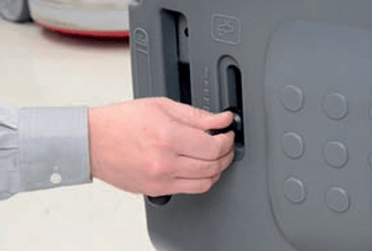

• Use solution knob to adjust solution flow

• Squeeze handle trigger to begin moving forward

• Close solution valve, raise scrub deck, and squeegee when cleaning is complete

---

Daily Maintenance

• Empty recovery tank
  • Position machine near mop sink or approved drain
  • Remove drain hose from clip and empty recovery tank

• Clean recovery tank

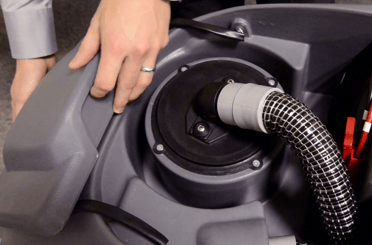

  • Open top cover



• • Disconnect vacuum hose

• • Remove float shut off assembly and rinse with hose

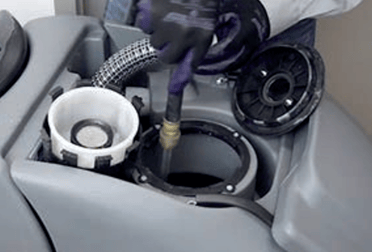

• • Use hose to rinse out recovery tank

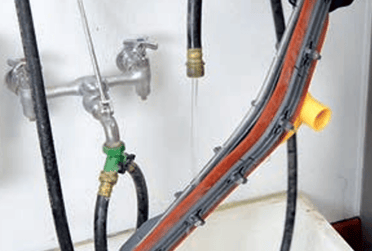

• • Remove and rinse squeegee assembly

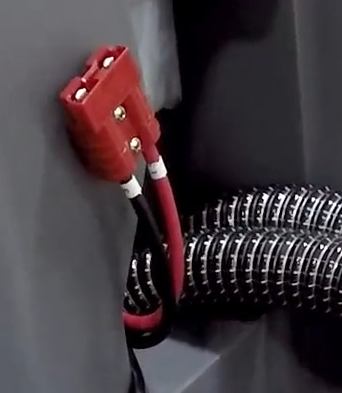

• • Connect battery to charger  and allow full charge cycle to complete prior to next usage of machine



---
